Setting Up Printers to Use Barcode Fonts

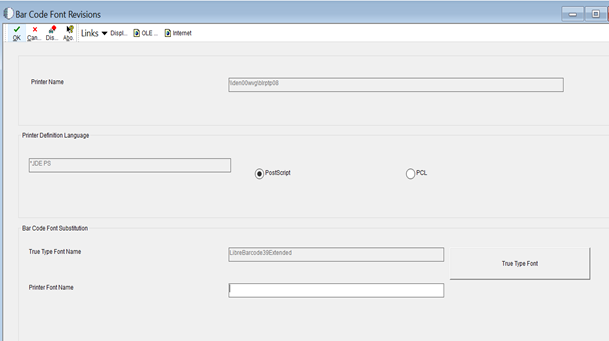

Access the Bar Code Support Revisions form.
barcode_font

Printer Name

Use the visual assist to select a printer to be used for printing barcode fonts.

Printer Definition Language

Select the printer definition language used by the printer selected. Options include PostScript and PCL.

True Type Font Name
Click the True Type Font button to select a font, such as the BC C39 3 to 1 Medium barcode font. The bar code true type font must reside in the Microsoft Windows font directory as well as the <system/resource/truetype> directory on the JD Edwards EnterpriseOne server where the report will run.
Important: Starting with Tools Release 9.2.9, the font BC C39 3 to 1 Medium is not available. You must select LibreBarCode39Extended instead for the True Type Font Name.
Printer Font Name

Enter the name of the printer font to be used.

Symbol Set ID

Enter a value that defines the character and character mapping for a specific symbol set. Contact the PCL printer font vendor to obtain this information. This option is available for the PCL printer definition language only.
