Identifying Columns to Include in the Chart
To identify the columns to include in the chart:
Access the Project Advisor Console form.
Form Name
Form ID
Navigation
Project Advisor Console
W51X0210A
Use one of these navigations:
In-Memory Project Portfolio Advisor (G5114).
Work with Project Advisor Console (P51X0200).
Specify the data selection criteria, and then click View Now on the Work with Project Advisor Console form.
In-Memory Project Portfolio Advisor (G5114).
Work with Project Advisor View (P51X0310).
Select the record to view and click Select, or click the link for the record in the View ID field.
Expand the Chart subform.

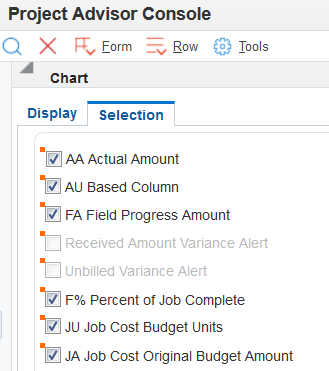

Select the Selection tab.
Select the check box next to each column that you want to include the column in the chart.
You can click the orange square in the upper left corner of the check boxes to view information about the column.
You cannot include visual alert columns in the chart.
Click the Display tab.
The system shows the columns that you selected in a bar chart.
