Defining a Column Layout

To set up a column layout:

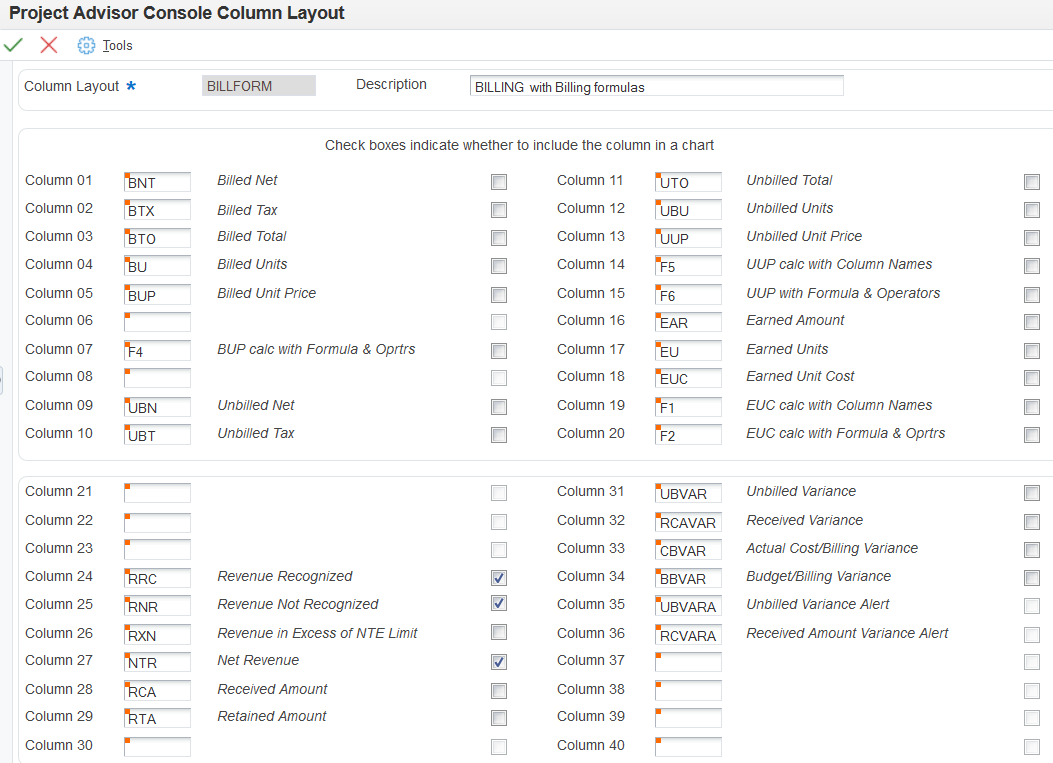

1. Access the Project Advisor Console Column Layout form.

   Form Name	Form ID	Navigation
   Project Advisor Console Column Layout	W51X91B	In-Memory Project Portfolio Advisor (G51411). Column Layouts (P51X91). Click Add on the Work with Project Advisor Console Column Layout form.



2. On the Project Advisor Console Column Layout form, complete these fields:

   Column Layout

   Enter a name for the column layout. You must complete this field.

   Description

   Enter a description for the column layout.

   Column 01–Column 40

   Enter a value from the Column Definition table (F51X90) to specify a column definition to include in the column layout. Each column layout must include at least one column definition. You can complete up to 40 Column fields.

   The order in which you select the columns determines the order in which the system displays the columns in the Project Advisor Console form.

3. Select the check boxes to the right of the column names to specify the columns to include in the chart on the Project Advisor Console form. The system disables the check box for visual alert columns.

   You can change the selected columns on the Project Advisor Console form.

4. Click OK.
