JD Edwards EnterpriseOne as a Web Service Provider - Asynchronous Notification

JD Edwards EnterpriseOne supports two methods for processing the web service provider asynchronous notification pattern. The most frequently used method is to expose a web service that accesses the JD Edwards EnterpriseOne data through a set of business function calls.

This pattern uses these systems:

• Orchestration system

• Business services server

• Enterprise server

• Database server

The orchestration system calls a JD Edwards EnterpriseOne web service. The web service calls a business service. The business service calls a business function. The business function performs the task that updates the JD Edwards EnterpriseOne database.

This diagram illustrates this model:

The other method uses JDBj to perform direct data access to the JD Edwards EnterpriseOne database.

This pattern uses these systems:

• Orchestration system

• Business services server

• Database server

The orchestration system calls a JD Edwards EnterpriseOne web service. The web service calls a business service. The business service makes a database operation call that updates the JD Edwards EnterpriseOne database.

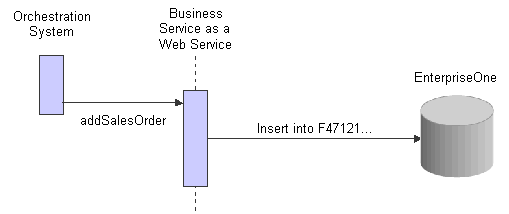

This diagram illustrates this model:
