JD Edwards EnterpriseOne as a Service Consumer – Asynchronous HTTP Request/Response

JD Edwards EnterpriseOne supports using HTTP POST for processing an asynchronous HTTP request/response pattern. This method uses HTTP POST as the request and expects an HTTP callback. In this pattern, the web server client continues to process other information while waiting for the response.

This pattern uses these systems:

• HTML web server

• Enterprise server

• Business services server

A request for information from a third-party system is made through the JD Edwards EnterpriseOne HTML web client. This request invokes a JD Edwards EnterpriseOne business function. The business function calls a JD Edwards EnterpriseOne business service. The business service contains the request and callback information for the third-party system. The third-party system uses the callback information to send a response that is in XML format to a JD Edwards EnterpriseOne published business service. The published business service can send the response to the business function, and the business function sends the response to the HTML web client. The published business service can also send the response to the HTML web client directly.

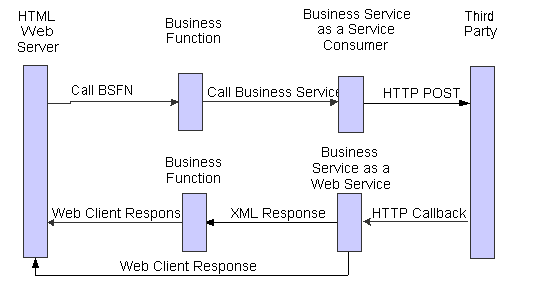

This diagram illustrates this model:
