Business Services Architecture

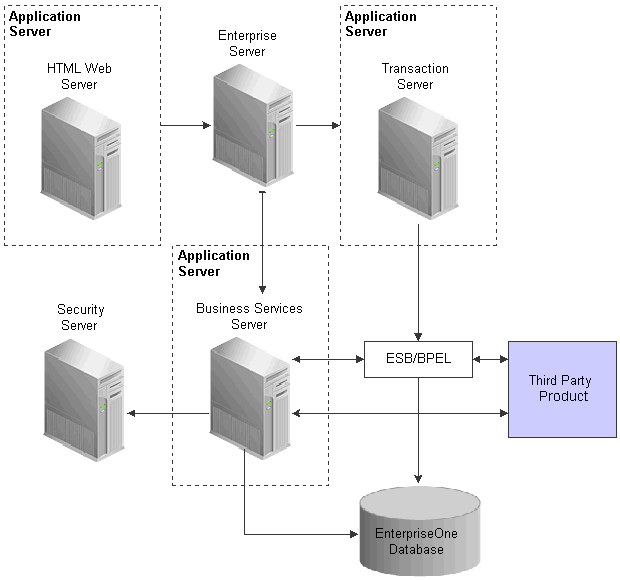

The following diagram illustrates the architecture for JD Edwards EnterpriseOne web services and business services:
This table discusses the servers and systems depicted in the diagram:
System |
Description |
|---|---|
Application Server |
Runs the business services server, the transaction server, and the HTML Web server. The application server can be an Oracle WebLogic Server or a WebSphere Application Server. |
HTML Web Server |
Runs JD Edwards EnterpriseOne interactive applications. Communicates with the enterprise server to run business functions. |
Enterprise Server |
Runs business functions that generate request/reply messaging events. |
Transaction Server |
Transports the XML message generated from the request/reply messaging API to the receiving systems using JMS Queue and JMS Topic. |
Security Server |
Provides authentication for JD Edwards EnterpriseOne components. |
Business Services Server |
Hosts the business service Java programs that communicate with JD Edwards EnterpriseOne. Provides a business services development client for developing and testing services as both a web service provider and a web service consumer. |
Orchestration System |
Used for SOA orchestration, for example, Oracle BPEL-PM and Oracle ESB. |
Database Server |
Hosts tables. |
