Add a Cross-Region Standby Database

You can enable Autonomous Data Guard with a cross-region standby when Autonomous Database is available (Lifecycle state shows Available).

To add a standby database you must have adequate available resources. Adding an Autonomous Data Guard standby database will only be successful if adding the standby database does not cause you to exceed your Tenancy or compartment limits for CPU and Storage.

Perform the following prerequisite steps as necessary:

  • Open the Oracle Cloud Infrastructure Console by clicking the navigation icon next to Cloud.

  • From the Oracle Cloud Infrastructure left navigation menu click Oracle Database and then click Autonomous Database.

  • On the Autonomous Databases page select your Autonomous Database from the links under the Display name column.

To add a cross-region Autonomous Data Guard standby:

  1. On the Autonomous Database details page, select the Disaster recovery tab.
  2. On the Disaster recovery tab, click Add peer database.

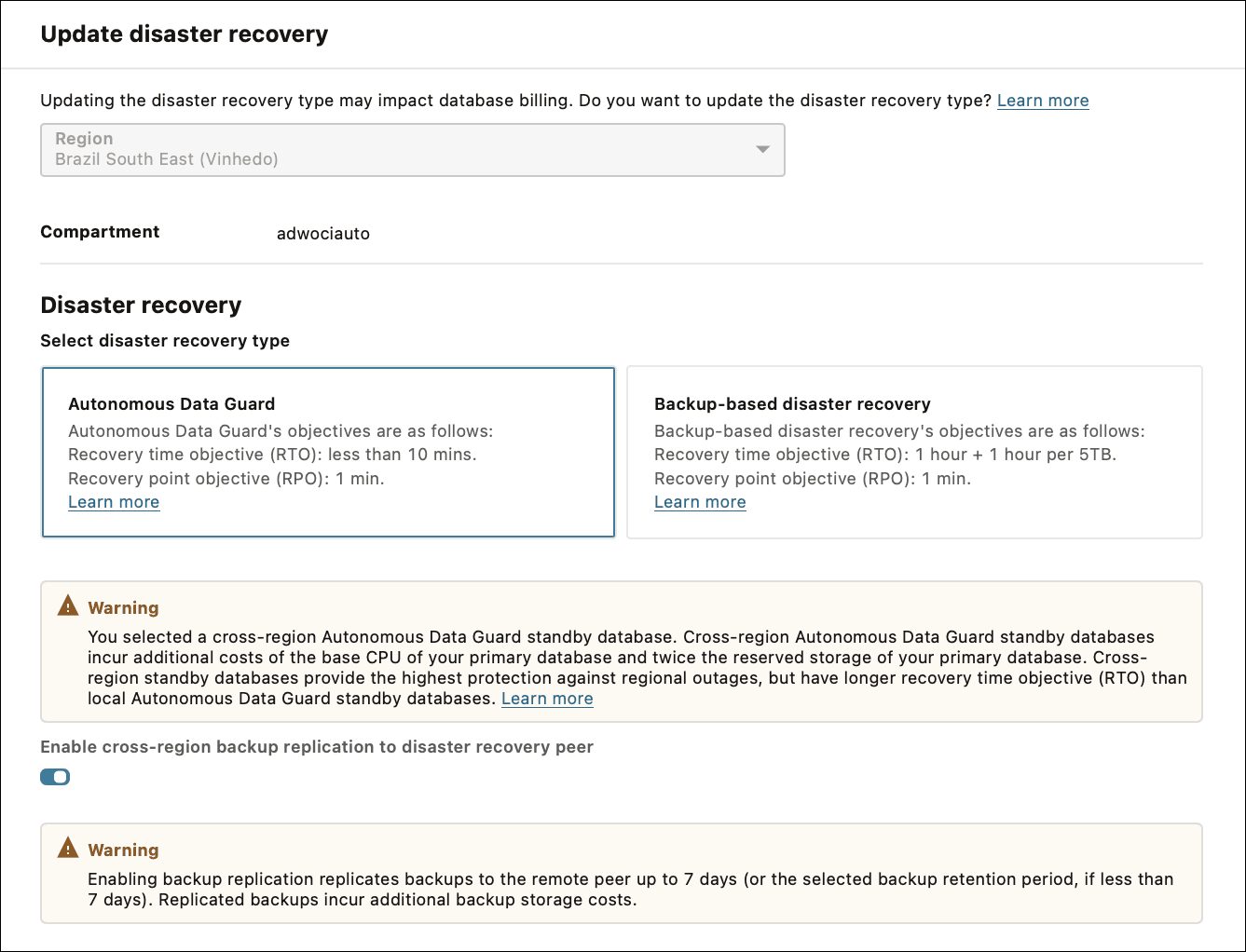

  3. In the Region list, select a region.

    The region list shows the available remote regions where you can create a cross-region standby. When you add a standby database, the list of available regions only shows a remote region if your tenancy is subscribed to the remote region (you must be subscribed to the paired remote region). See Autonomous Database Cross-Region Paired Regions for more information.

  4. When you select a region, Autonomous Database shows the Compartment list. From this list select a compartment for the cross-region standby.
  5. Select the disaster recovery type. In addition, when the source database is configured with a private endpoint, enter the private endpoint information for the peer.
    1. Select the disaster recovery type: Autonomous Data Guard.
    2. If you want to enable cross-region backup replication, switch the Enable cross-region backup replication to disaster recovery peer toggle on.

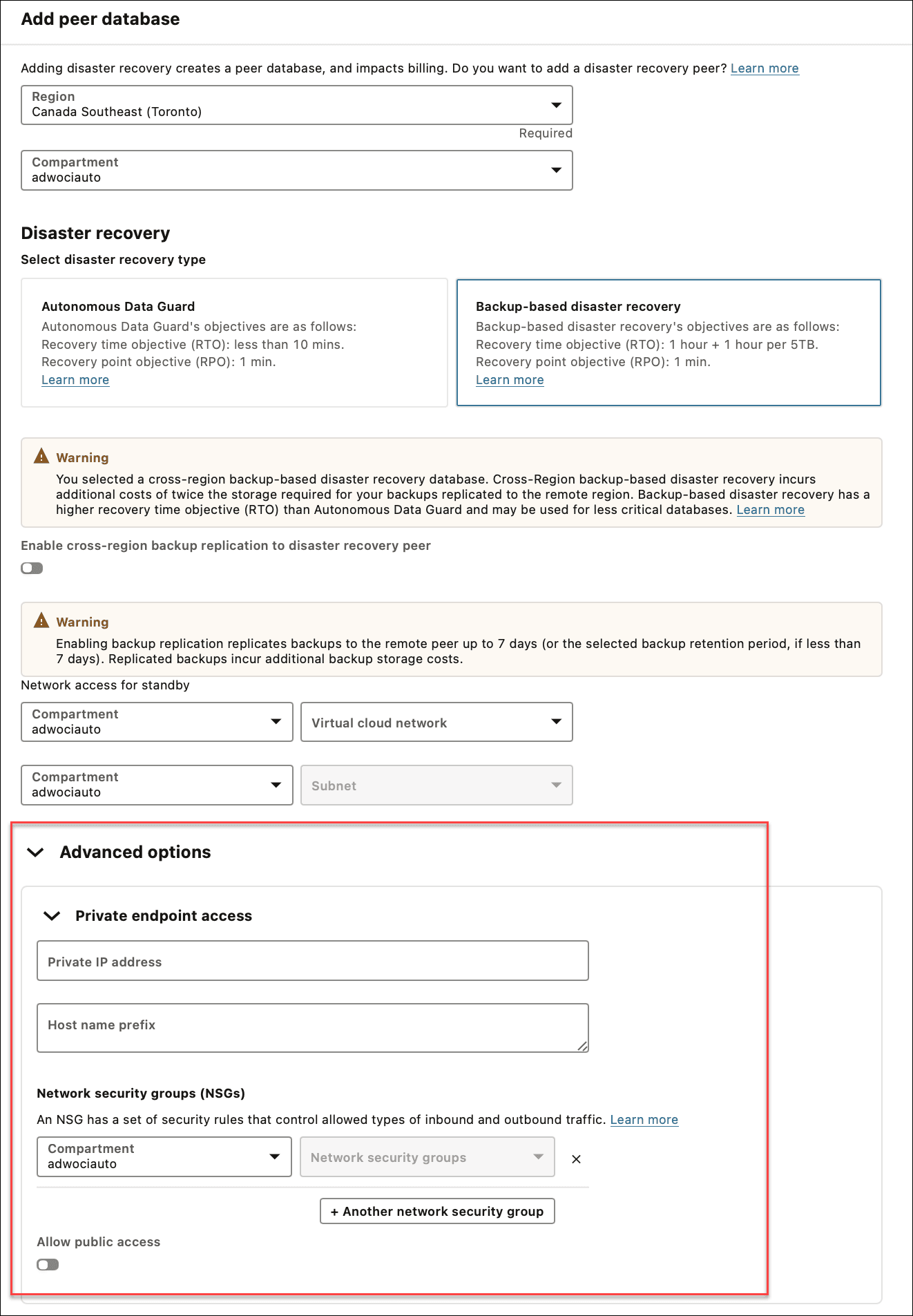

    3. When the source database is configured with a private endpoint, in the Network access for standby area enter the Virtual cloud network and the Subnet.

      In these Network access for standby fields you specify the private endpoint's VCN and Subnet on the remote region where the standby is created.

      Note

      If you change your network access on the source database to enable a private endpoint after the standby is created, you must manually access the standby to enable a private endpoint on the peer.
  6. Click Add.

    The Autonomous Database lifecycle state badge shows Updating. On the Disaster recovery tab the State column for the peer shows Provisioning.

    After some time the lifecycle state badge shows Available and the standby database provisioning continues.

    Note

    While you add a standby database, the primary database is available for read/write operations. There is no downtime on the primary database.

When provisioning completes, on the Oracle Cloud Infrastructure Console, on the Autonomous Database details page, the Disaster recovery area the shows the following:

  • Role shows Primary

  • The Local field shows either Backup-based or Autonomous Data Guard.

    The local field also has an Actionsmenu. If the local standby is Backup-based, the actions menu shows the options Upgrade to Autonomous Data Guard and Switchover.

  • The Cross-region field shows:

    • Autonomous Data Guard when you have single cross-region standby database.

    • x peers: When you have multiple cross-region disaster recovery peers, where x is the number of cross-region peers.

When you add a cross-region standby, the standby database created in the remote region has the same display name as the primary database with an "_region" extension. Where region is the region name, such as IAD or BOM.

On the Disaster recovery tab the Peer Autonomous Database column shows the standby database name and a provides a link. Click the link to go to the Oracle Cloud Infrastructure Console for the remote standby database.

Notes for adding a cross-region standby database:

  • Autonomous Database generates the Enable cross-region disaster recovery work request. To view the request, on the Autonomous Database details page select the Work requests tab.

  • After you add a cross-region (remote) standby database, the wallet and connection string from the primary database will contain only the hostname of the primary database, and the wallet and connection string from the remote database will contain only the hostname of the remote database. This applies for both instance and regional wallets.

    See Cross-Region Disaster Recovery Connection Strings and Wallets for more information.

  • If you switch on the Enable cross-region backup replication to disaster recovery peer toggle, replicating the backups to the remote region can take between several minutes and several hours, depending on the size of the backups. After backups are replicated, on the peer's Autonomous Database details page, the Backups tab shows the list of replicated backups.

  • While you add a standby database and the lifecycle state badge shows Updating. The following actions are disabled for the primary database while it is updating:

  • See Cross-Region Autonomous Data Guard Notes and Notes for Customer-Managed Keys in OCI Vault with Autonomous Data Guard for information on using customer-managed keys and for additional notes for using Autonomous Data Guard with a cross-region standby.
