MICROS Workstation 610/620/650 Primary I/O Ports

The Primary I/O Panel contains the following ports:

  • 12V Power Output

  • 12V Power USB Header

  • IDN Port RS422/RS232

  • Series 2 Cash Drawer x2The Series 2 ports are more compact than the previous generation and feature an expanded number of pins to accommodate more options on the cash drawer interface. You can use an adapter cable for backwards compatibility to existing cash drawers.

  • USB 2.0 x2

  • High Definition 2nd Display Output Connector Display Output

  • Customer DisplayThe Customer Display port supports existing pole displays and the Workstation 6 integrated customer display.

  • USB x2

  • 10/100/1G Ethernet

  • 24V Power USB (620 and 650 Only)

  • RJ-45 Powered Serial (0/5/9/12V)

    • 2 available on the 610

    • 1 available on the 620 and the 650

  • RJ-45 Serial

  • Microphone In/Headphone Out

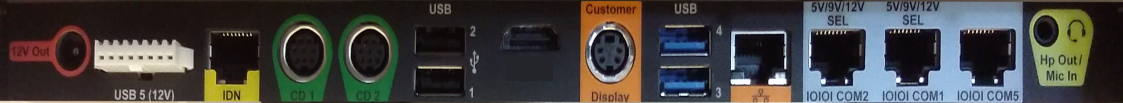

Figure 7-2 Primary I/O Panel of the MICROS Workstation 610


This figure shows the Primary I/O Panel of the MICROS Workstation 610.

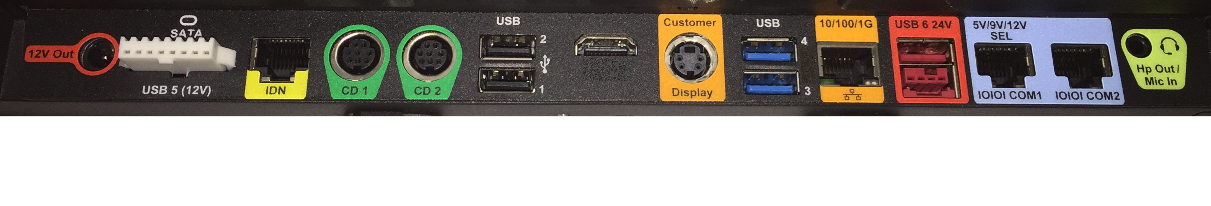

Figure 7-3 Primary I/O Panel of the MICROS Workstation 620 and 650


This figure shows the Primary I/O Panel of the MICROS Workstation 620 and 650.
