MICROS Base Station Connectors

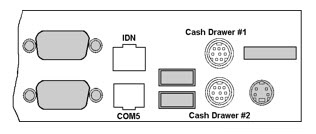

The figure below shows the Base Station Modular COM ports and 8-Pin Mini-DIN Cash Drawer connectors.

Figure 10-3 Base Station Modular and Smart Cash Drawer Connectors


This figure shows the Station Modular COM ports and 8-Pin Mini-DIN Cash Drawer connectors.

The Cash Drawer Conversion Cable, PN 300290-020-PT, adapts a MICROS Cash Drawer with 4-pin DIN connector to Base Station.

Parent topic: MICROS Base Station
