New JDBC Control Dialog

Use this dialog to create a new JDBC control.

How To Open This Dialog

You can open the dialog in one these ways:

From any perspective, select File > New > Other > Controls > JDBC Control.
In the Workshop perspective, select File > New > JDBC Control.
In the Page Flow perspective, right-click the Referenced Controls node on the Page Flow Explorer tab, and select Add Control > New System Control > JDBC Control > Ok.
From the source editor window, right click and choose Insert > Control then expand New System Control and choose JDBC Control.

How To Use This Dialog

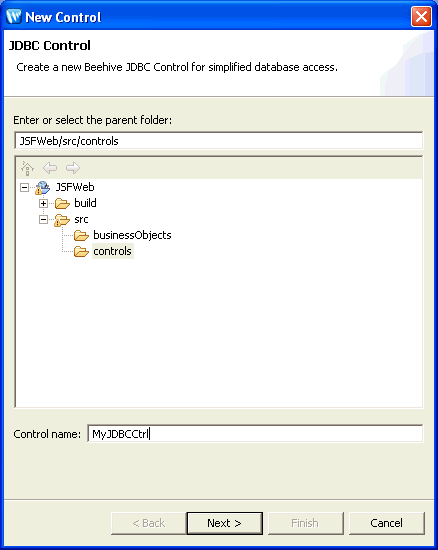

In Enter or select the parent folder, select to the directory location, where the new control is be created. If the desired directory does not already exit, you may enter the directory path to create the desired directory.

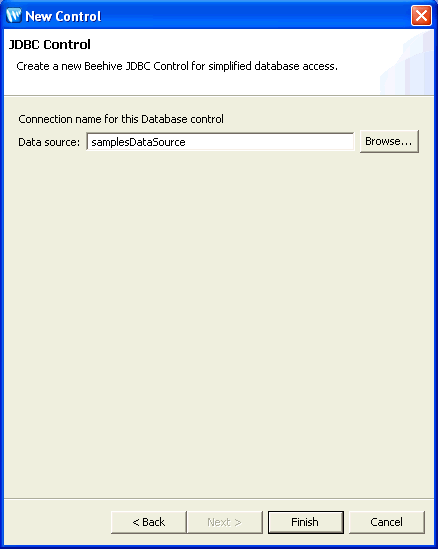

Provided that WebLogic Server is running, you can browse for available data sources. If the server is not running and you know the name, you can just type it in.
